FIBER OPTIC CABLES
AERIAL CABLES –

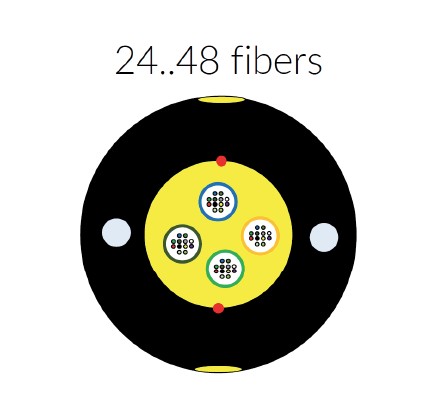

ADSS DROP CABLE 24-48
Outdoor aerial installation – 75m span length, NESC Medium, 1% installation sag
– Loose tubes with 12 optical fibers, filled with thixotropic compound
– Stranded loose tubes with dummies if necessary
– Central strength member made of FRP with PE coating if necessary
– Cable strand: dry, with water blocking yarns and tape
– Outer sheath: Black HDPE, UV resistant, 2 ripcords under sheath
DS-OUT-CABLES-ADSS-DROP-24-48
| TECHNICAL FEATURES | |||
|---|---|---|---|
| Number of fibers | 24 | 36 | 48 |
| Module Ø | 1.35mm | 1.35mm | 1.35mm |
| Outer sheath thickness | Nom 2.0mm (FRP portion) | Nom 2.0mm (FRP portion) | Nom 2.0mm (FRP portion) |
| Outer diameter | 7.7±0.5mm | 7.9±0.5mm | 8.3±0.5mm |
| Weight (±10%) | 43kg/km | 46kg/km | 50kg/km |
