FIBER OPTIC CABLES
AERIAL CABLES –

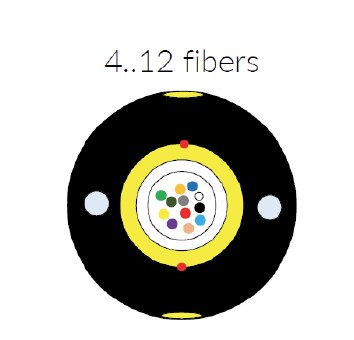

ADSS DROP CABLE 4-12
– Central loose tube with up to 12optical fibers and jelly inside
– Aramid yarns peripheral strength member with water blocking yarns
– Outer sheath: HDPE, anti-UV, 2 ripcords under the sheath
– 2 parallel FRP rods embedded inside outer sheath
– Colored strips (2, Yellow)
DS-OUT-CABLES-ADSS-DROP-4-12
| TECHNICAL FEATURES | |||
|---|---|---|---|
| Number of fibers | 4 | 8 | 12 |
| PBT Tube Ø | 2.5mm | 2.5mm | 2.5mm |
| Outer sheath thickness | Nom 1.4mm | Nom 1.4mm | Nom 1.4mm |
| Outer diameter | 7.0±0.3mm | 7.0±0.3mm | 7.0±0.3mm |
| Weight (±10%) | 40kg/km | 40kg/km | 43kg/km |
