CONNECTORS

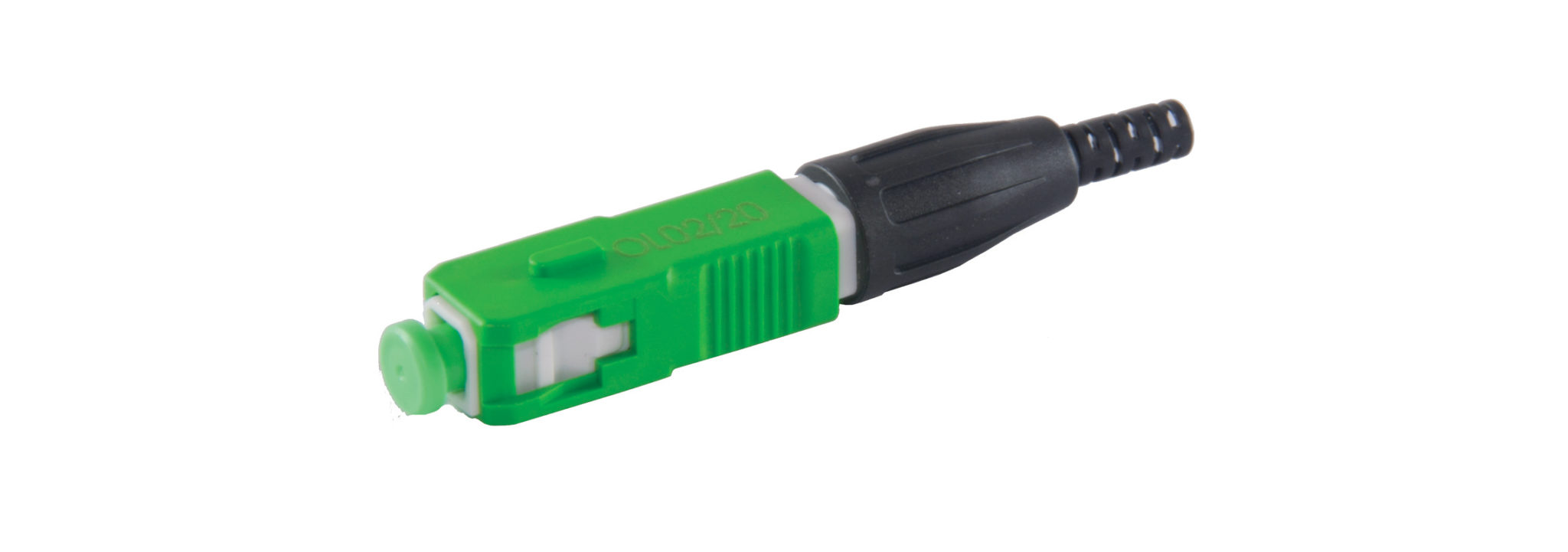

FAST MECHANICAL CONNECTOR SC/APC
The fast mechanical connector can be easily mounted directly on the field, because allows a fast and simple mechanical splicing. A pre-polished ferule is supplied from the factory with all the accessories to complete the installation of the connector on a 900 μm cable.
Our connectors come in KIT which can include the support for cutting the fiber (holder) and the fiber cleaver itself.
OUT-CONN-920H-SCA-KIT / KIT COMPOSITION: 60 pcs Mechanical Connectors SC/APC + 1 Pc Fiber Cleaver – NMU 776764
OUT-CONN-920H-SCA / KIT COMPOSITION: 60 pcs Mechanical Connectors SC/APC
| TECHNICAL FEATURES | |
|---|---|
| FIBERS COMPATIBILITY | 850 ~ 950 μm |
| INSERTION LOSS | (@1310-1550 NM) ≤ 0.6 dB |
| RETURN LOSS | (@1310-1550 NM) ≥ 50 dB |
| INSTALLATION TIME | ≥ 30 sec |
| FERULE | Pre-polished SC/APC |
| FIBER COUPLING SYSTEM | V-Grove (gel ottico) |
