DATA ROOMS AND DATA CENTERS
MODULAR IN-ROW MULTI-LAYER STRUCTURE
FOR DATA ROOMS

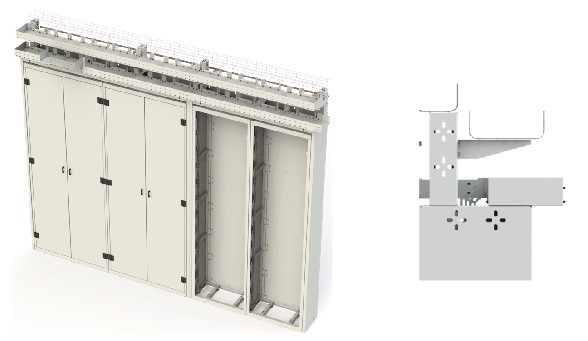

COMPLETE SINGLE-SIDE CONFIGURATION
The complete single-side configuration, with two complete levels, includes:
1. Bridge structures of variable length according to the project needs;
2. Copper bar for equipotential connection, with relative fixing brackets and insulators;
3. First level with full cable tray, dedicated to the FO cables, with relative lateral protection brackets;
4. Second level with full cable tray, dedicated to the FO and data cables, with relative lateral protection brackets;
5. Descents for the FO, no. 2 for each cabinet foreseen by the project (the number can be changed on request);
6. Turrets and shelves for assembling the upper levels;
7. Third level with commercial-type wire walkway for energy cables, with relative assembly clamps.

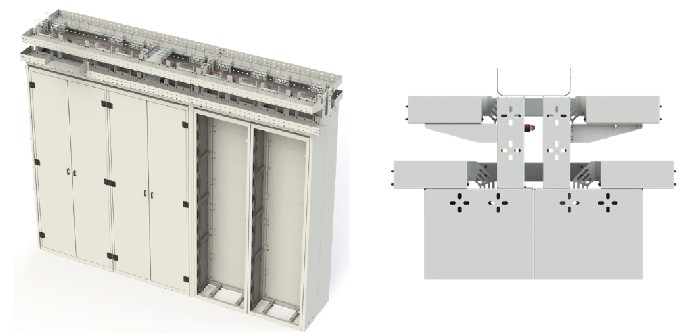

COMPLETE DOUBLE-SIDE CONFIGURATION
The complete single-side configuration, with two complete levels, includes:
1. Bridge structures of variable length according to the project needs;
2. Copper bar for equipotential connection, with relative fixing brackets and insulators;
3. First level with full cable tray, dedicated to the FO cables, with relative lateral protection brackets;
4. Second level with full cable tray, dedicated to the FO and data cables, with relative lateral protection brackets;
5. Descents for the FO, no. 2 for each cabinet foreseen by the project (the number can be changed on request);
6. Turrets and shelves for assembling the upper levels;
7. Third level with commercial-type wire walkway for energy cables, with relative assembly clamps.
