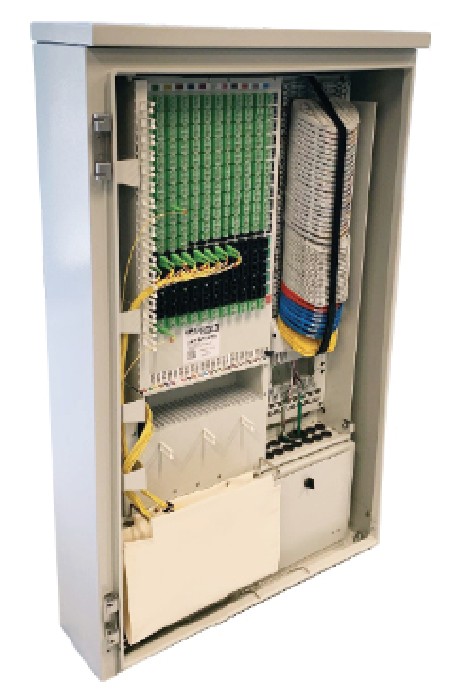

F.O. OUTDOOR CABINET
CNO
The CNO cabinet allows, on a multi-operator passive network (PON) that supports point-to-point and point-multipoint technologies, the optical connection of up to 256 HH (secondary network), with the possibility of swapping, between the cables coming from a primary concentration element and the cables directed to the individual HH.
It’s external case, including door and roof, can be dismounted in case of damage without interrupting the connections inside.
LNIT-CNO-INFRATEL
| TECHNICAL FEATURES | |
|---|---|
| MATERIAL | * **AISI 304 stainless steel** for the outer enclosure and **AISI 430 stainless steel or higher grade** for the internal components. |
| EXTERNAL DIMENSIONS | 1100x700x200 mm (AxLxP) |
| COLOR | STANDARD RAL 7035 |
| ADAPTERS QTY | * **256 + 24 SC/APC adapters (secondary network + primary network).** |
| SPLICE TRAYS QTY | Splicing/parking area of optical fibers connected to the cabinet, consisting of: - no. 22 SE trays for secondary network fiber splices, gray color; - no. 20 SF trays for secondary network fiber splices, gray color; - no. 2 SE trays for primary network fiber splices GPON, red color. - no. 5 SE trays for point-to-point network fiber splices, blue color; - no. 3 SF trays for primary network fiber splices, yellow color; |
| SPLITTER QTY | No. 1 optical splitter type 1:16 BUTT, fully SC/APC connectorized |
| LOCK TYPE | European type cylinder 333 (EN1303) with the possibility of a unified key with a single encryption. |
