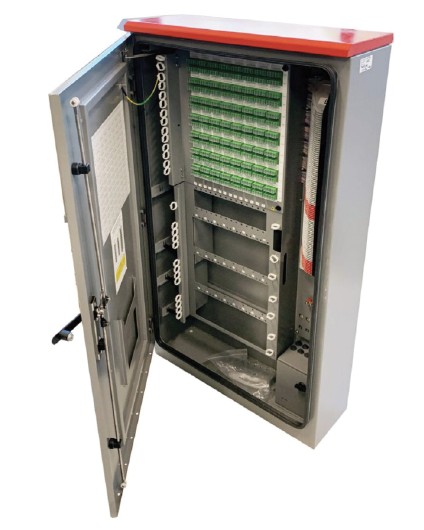

F.O. OUTDOOR CABINET
CRO 576 FO
The 384 FO CRO has been developed for the outdoor infrastructure and it is configured for the termination of primary and secondary network cables.
Despite the compact dimension of this cabinet it can host up to 384 HH (secondary network). It can host 1×2, 1×4 and 1×16 HGLX splitters.
CRO 2023-V0
| TECHNICAL FEATURES | |
|---|---|
| MATERIAL | EXTERNAL PARTS: SUS 304 sp 1,5 mm DOOR: SUS 304 sp 1,2 mm INTERNAL PARTS: SUS 430 sp 1,2 mm |
| EXTERNAL DIMENSIONS | 1300x750x250mm (AxLxP) |
| PROTECTION DEGREE | IP55 & IK10 |
| COLOR | Cabinet: RAL7037 Grigio Polvere Tetto: RAL 3020 Rosso Traffico |
| ADAPTERS QTY | 384 + 64 SC/APC (secondary network + primary network) |
| SPLICE TRAYS QTY | 48 + 24 grey color (splice + secondary network parking) 8 + 8 red color (splice + primary network parking) |
| SPLITTER QTY | Up to 24 secondary splitter 1:16 Up to 14 primary splitter primari (1:2 or 1:4) |
| LOCK TYPE | TIM special lock (Can be changed according to the request) |
