F.O. OUTDOOR CABINET
NEW SCP – POLE MOUNTING

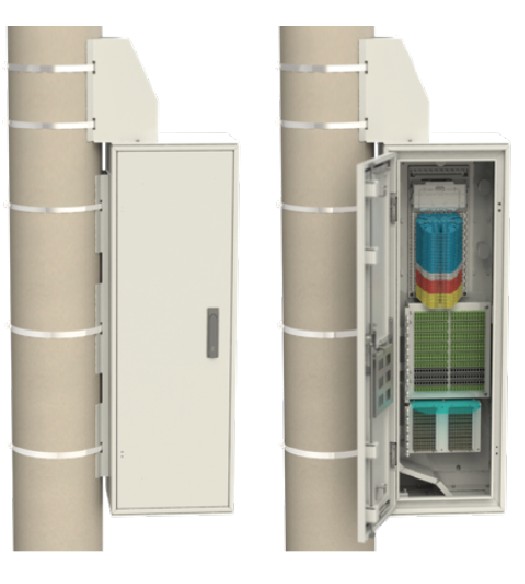

The New SCP Pole-mounting cabinet is designed for distribution and connection of optical fiber. It is intended for outdoor installation on both concrete and wooden poles. The cabinet allows, on a multi-operator passive network (PON) that supports point-to-point and multi-point technologies, the optical connection of up to 256 HH (secondary network), with the possibility of exchange, between the cables coming from a primary concentration element and the cables directed to the individual customer. The door and the input/output can be changed based on the on-field installation needs. RC2 compliant.
OUT-SCP-NEW-POLE
| TECHNICAL FEATURES | |
|---|---|
| MATERIAL | Alluminun |
| MATERIAL BOTH POLE FIXING KITS | SUS 304 |
| BASEMENT ACCESSORY | Alluminun |
| CABLE ENTRY PROTECTION ACCESSORY | Alluminun |
| COLOR | Light Grey RAL 7035 |
| PROTECTION | IP65 & IK10 |
| MISURE | 1200mm (Body) 400mm 300mm (AxLxP) |
| ADAPTERS QTY | 360 SC/APC ports (256 for secondary network, 72 for parking and 24 for primary network) |
| SPLICE TRAYS QTY | Splicing/parking area for optical fibers connected to the cabinet, consisting of: - Distribution GPON splices: 22 blue trays - Aggregation GPON splices: 4 grey trays - P2P splices: 8 red trays - Parking of unused fibers: 8 yellow trays |
| SPLITTER QTY | Up to 24 pcs of 1x16 BUTT type optical splitters with pre-connectorized SC/APC input and output |
| INGRESSI | Top Cable entry Area (which is reversible to have the entrances on the left side or right side): a) 6 round entrances for ADSS cables with diameter up to 16,5 mm b) 1 oval entrances for ADSS cables with diameter up to 16,5 mm Bottom Cable entry Area (which is reversible to have the entrances on the left side or right side): a) 4 round entrances for ADSS cables with diameter up to16,5 mm b) 2 round entrances for a 24x4/7+1x10/14 mm bundle with diameter up to 45 mm |
| PROTECTION CLASS | RC2 - IK10 - IP55 |
