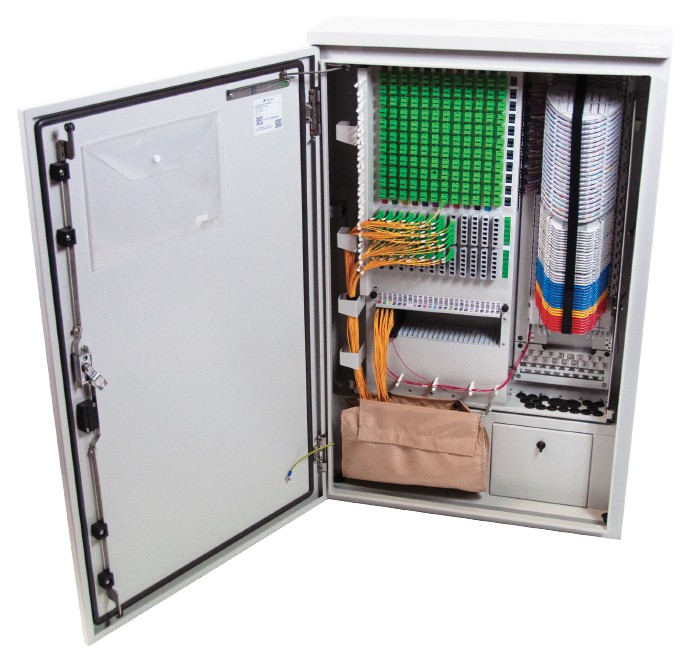

F.O. OUTDOOR CABINET
PFS 3
The PFS 3 cabinet allows, on a multi-operator passive network (PON) that supports point-to-point and point-multipoint technologies, the optical connection of up to 256 HH (secondary network), with the possibility of swapping, between the cables coming from a primary concentration element and the cables directed to the individual HH.
It’s external case, including door and roof, can be dismounted in case of damage without interrupting the connections inside.
PFS3
| TECHNICAL FEATURES | |
|---|---|
| EXTERNAL DIMENSIONS | 110x70x20 cm. |
| PROTECTION GRADE | IP55 – IK10. |
| MATERIAL | SUS 304 |
| WEIGHT | 40 kg |
| LOCK TYPE | European type cylinder 333 (EN1303) with the possibility of a unified key with a single encryption. |
