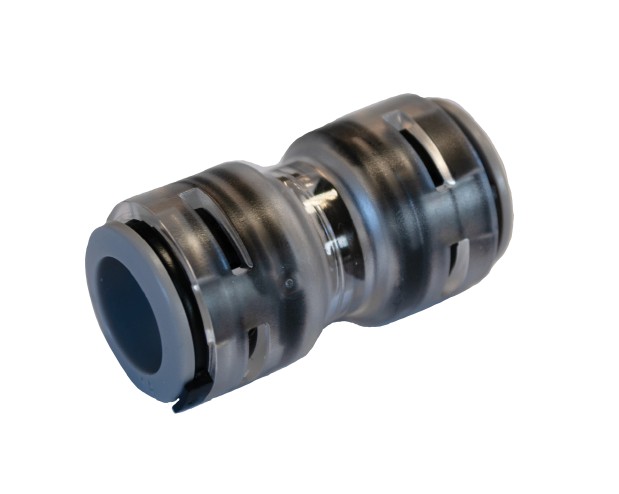

MICRODUCTS CONNECTORS

Microducts fast connectors are needed to connect microtubes together, they have tensile strength and pressure resistance according to the specification. These characteristics make them perfectly performing when using cable blowing machines.

STR12/10MM / 12 mm ducts
STR14/10MM / 14 mm ducts

TECHNICAL FEATURES
MATERIALPolicarbonato
BLOCKING SYSTEMPOM, with steel teeth
MATERIAL O-RINGO-RING Nitrile
BLOWING PRESSURE16 bar @ -20 / +50 °C
BREAKING PRESSURE> 26 bar
GAS SEALLeackage at 16 bar: ~1ml/minute – leackage at 0,7 bar: ~0,1ml/minute
WATER RESISTANCEI giunti resistono ad una colonna d’acqua di 6 metri
INSERTION FORCE50 N max (5kg)
Seal125N min microdotti 10mm
