FIBER OPTIC CABLES

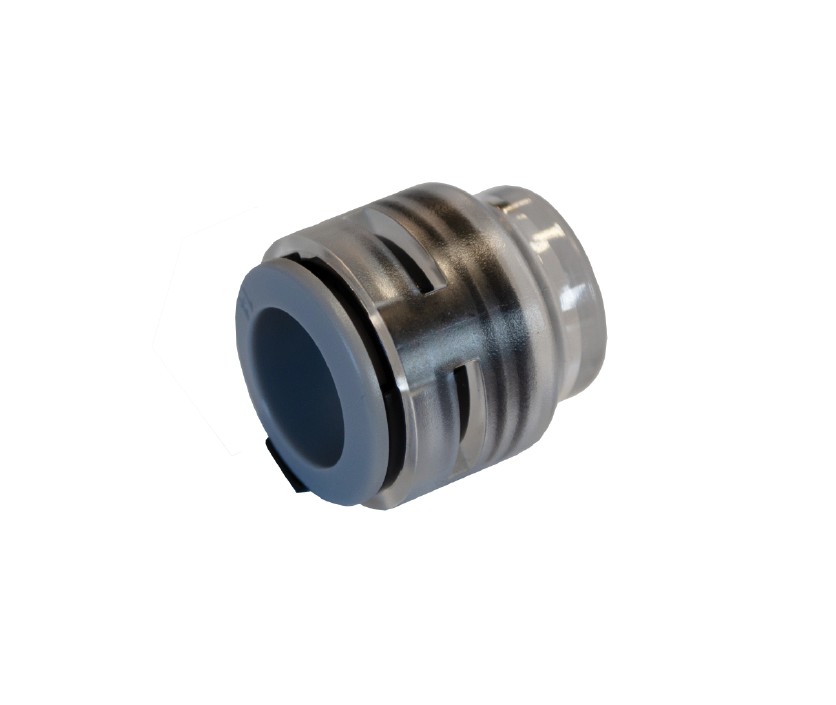

MICRODUCTS END CAPS

Quick-release caps are necessary for closing microtubes and have a perfectly watertight seal.

EST 12MM / 12 mm ducts
EST 14MM / 14 mm ducts

TECHNICAL FEATURES
MATERIALPolycarbonate
BLOCKING SYSTEMPOM, with steel teeth
MATERIAL O-RINGO-RING Nitrile
BLOWING PRESSURE16 bar @ -20 / +50 °C
BREAKING PRESSURE> 26 bar
GAS SEALLeackage at 16 bar: ~1ml/minute – leackage at 0,7 bar: ~0,1ml/minute
WATER RESISTANCEUp to 6-meter water column
INSERTION FORCE50 N max (5kg)
SealSuitable for Ø10 mm microducts, minimum 125 N
End CapsAvailable in Ø12 mm and Ø14 mm versions
