OPTICAL CLOSURE
288-SPLICES / 16+1 INPUTS

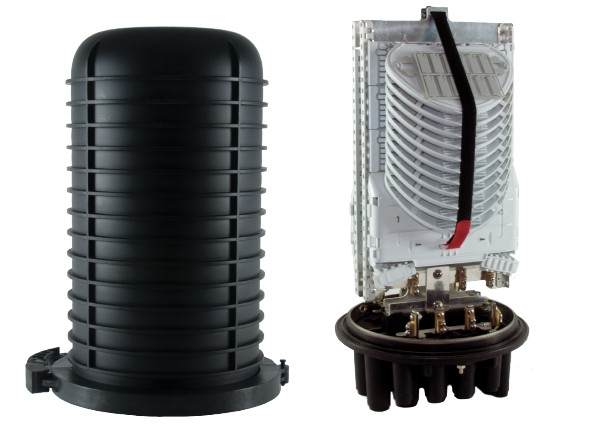

The 288-SPLICES, 16-round input + 1-oval input FIST-type OPTICAL CLOSURE is a watertight, passive F.O. BOX, which guarantees a high degree of IP protection and therefore impermeability to external agents such as water, dust, humidity and extreme temperatures. It guarantees a resistance capacity range from -40° to 70°. Supplied with splice trays, heat-shrink kits for cable entry and pole or wal anchoring kit, it is mainly used in hostile environments, ensuring the management and operability of the fiber in safety.
Q-CL-FST-16 / FIST type up to 288 splices with 16 circular input and 1 oval input
| TECHNICAL FEATURES | |
|---|---|
| OVAL INPUTS | 1 |
| ROUND INPUTS | 16 |
| OVERALL DIAMETER (INCLUDING CLAMP) | 298 mm |
| OVERALL HEIGHT (INCLUDING BASE) | 504 mm |
| OVAL INPUT CABLE DIAMETER RANGE FOR HEAT-SHRINKABLE APPLICATION | 2 cables from 20 to 25 mm |
| CABLE DIAMETER RANGE FOR HEAT-SHRINKABLE APPLICATION ON THE N. 8 PCS 16mm ROUND INPUT | 6-16 mm |
| CABLE DIAMETER RANGE FOR HEAT-SHRINKABLE APPLICATION ON THE N. 8 PCS 21mm ROUND INPUT | 6-21 mm |
| SPLICE TRAYS | 24 |
| MAX SPLICE CAPACITY FOR EACH TRAY | 12 F.O. |
| MAX SPLICING CAPACITY | Up to288 F.O. |
