OPTICAL CLOSURE
SPLICES / 3+1 input

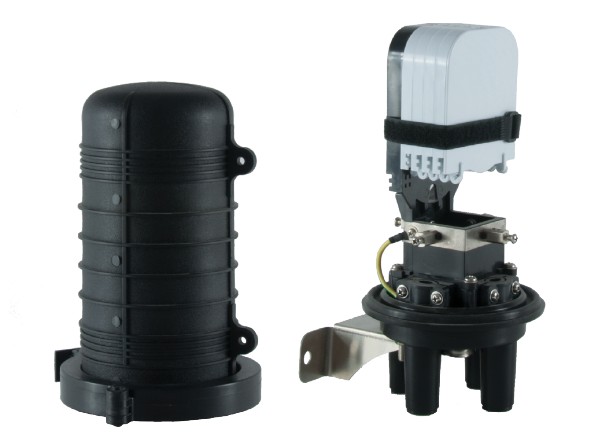

The compact 48-junction, with 3 round inlet and 1 oval inlet, optical closure is a passive and watertight F.O. box, which guarantees a high degree of IP protection and therefore impermeability to external agents such as water, dust, humidity and extreme temperatures. It guarantee a resistance capacity range from -40° to 70°. Supplied with splice trays, heat-shrink kits for cable entry and a pole or wall anchoring kit, it is mainly used in hostile environments, ensuring the management and operability of the fiber in safety.
Q-CL-03 / OPTICAL CLOSURE up to 48 splices with 3 circular input and 1 oval input
| TECHNICAL FEATURES | |
|---|---|
| OVAL INPUTS | 1 |
| ROUND INPUTS | 3 |
| OVERALL DIAMETER (INCLUDING CLAMP) | 188 |
| OVERALL HEIGHT (INCLUDING BASE) | 300 |
| OVAL INPUT DIAMETER FOR HEAT-SHRINKABLE APPLICATION | 20 |
| ROUND INPUT DIAMETER FOR HEAT-SHRINKABLE APPLICATION | 16 |
| SPLICE TRAYS | 4 |
| MAX SPLICE CAPACITY FOR EACH TRAY | 12 F.O. |
| MAX SPLICING CAPACITY | up to 48 F.O |
