DATA CENTER AND DATA ROOMS – ENERGY MANAGEMENT

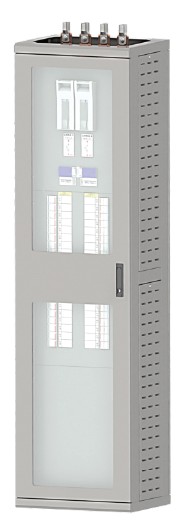

HEAD-ROW ELECTRIC PANEL QCC 630A
The QCC receives continuous power from Energy Station 1 and Energy Station 2 and is functional to power the TLC devices installed in the row structures of OLO room.
It can be installed either at the beginning/end of a modular in-row multi-layer structure or independently.
The QCC is equipped with remote monitoring systems for the state of the fuses and consumption measurements.
QCC48-20+20-630A
| TECHNICAL FEATURES | |
|---|---|
| DIMENSIONS | 600X450X2200 (b x p x h) |
| COLOR | Light Grey ral 7035 |
| IP PROTECTION DEGREE | IP30 |
| CASE MATERIAL | AISI 304 |
| CURRENT RATING | 630A |
| POWER SUPPLY | n. 2 distribution lines |
| VOLTAGE RATING | 48V DC |
