These cabinets are the result of careful design and a production process carried out using the latest-generation machinery for cutting/bending and welding of sheet metal. Made up of a double welded frame that together with the bottom and the roof form the load-bearing structure of the Rack. Extremely sturdy cabinet, perfect in its geometry, carefully finished, versatile and easy to assemble as well as light in weight. Static load of 800 kg.

• According to the standards: EIA 310-E, IEC 60297, DIN 41494
• Protection degree according to EN60529: IP20
• Elegant design
• Resistant to industrial environments through special phosphate treatments and epoxy powder coating
• Accurate finishes
• Quick and easy assembly
• No special tools are required for assembly
• Robust structure and resistant to a maximum static load of 800 kg.
• Material: cold-rolled steel

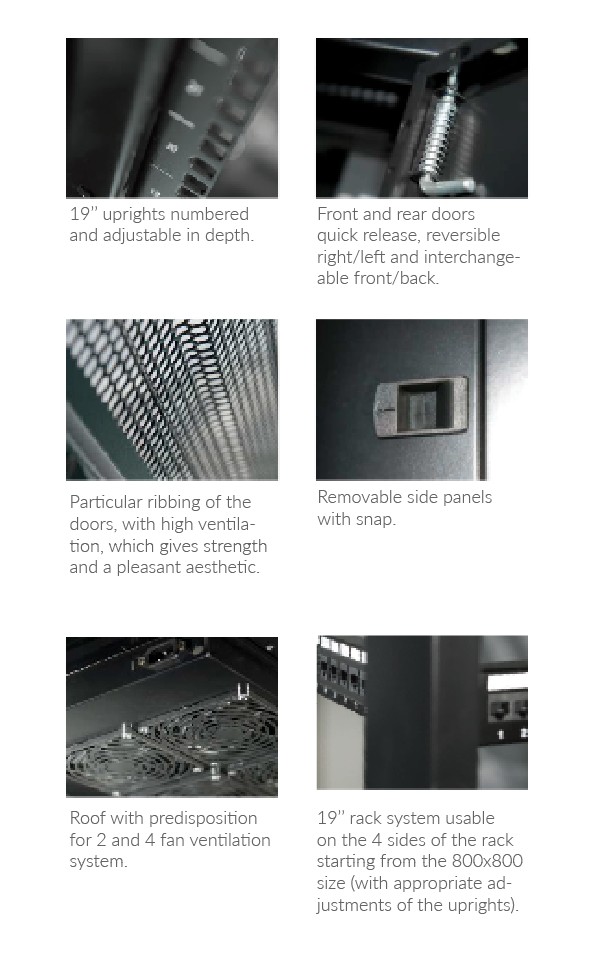

• Adjustable cable passage on the lid and bottom
• Interchangeable front/back doors, installable on both the right and left side
• Opening angle of the front door greater than 180°
• Earthing points on the structure and on the doors
• Number of units on the uprights
• Lock with handle
• Round lock for blind door
• Ventilation provided on the lid and bottom
• Glass or perforated doors for high ventilation
• 5mm thick tempered glass
• Side panels removable for easy set-up
• With adjustable feet
• A wide range of accessories available
• Custom models available
• Colours: Black RAL 9004 or Grey RAL 7035
• Delivered in reduced packaging or assembled RoHS
