FIBER OPTIC CABLES

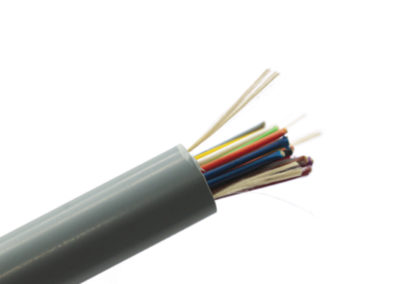

RISER CABLE – OUTDOOR APPLICATION
The riser cable is used for laying outside buildings in the section preceding the arrival at the user. Each fiber is individually reinforced with Kevlar. It is possible to choose it in two configurations of 12 fibers and 24 fibers of 900um depending on how many real estate units to be served. CPR CLASS Cca, s3, d1, a3.
CAV-EST-12FO-TIM / Outdoor multifiber cable, dark grey color, TOL12 G.657 A2, ST 922/ST 929 with CPR Euroclass Cca, s3, d1, a3 – MOQ 2.000 meters
CAV-EST-24FO-TIM / Outdoor multifiber cable, dark grey color, TOL24 G.657 A2, ST 922/ST 929 with CPR Euroclass Cca, s3, d1, a3 – MOQ 2.000 meters
| TECHNICAL FEATURES | |
|---|---|
| FIBER TYPE | G.657-A2 |
| MINIMUM BENDING RADIUS | 5 x Ø cavo |
| TENSILE STRENGTH | 400 N Δ att. ≤0,1db/km |
| CRUSHING | 500 N Δ att. ≤0,1db/km |
| ENERGY IMPACT | I1 J N° impatti: 3 Δ att. ≤0,1db/km |
| TEMPERATURE | - 10 / +60°C Δ att. ≤0,1db/km |
| N. OF PICOBREAKOUT | 12 - 16 - 20 - 24 - 32 |
| PICOBREAKOUT DIAMETER | 0,875 ± 0,10 mm |
| CABLE DIAMETER (± 0,2 mm) | 6,0 - 7,0 - 8,0 - 8,5 - 9,5 |
| NOMINAL CABLE WEIGHT / km | 40 kg/km - 55 kg/km - 70 kg/km - 75 kg/km - 90 kg/km |
| COLOR | RAL 9002 |
| WEIGHT | 20 kg/km |
