CLADDING ALIGNMENT – FTTH

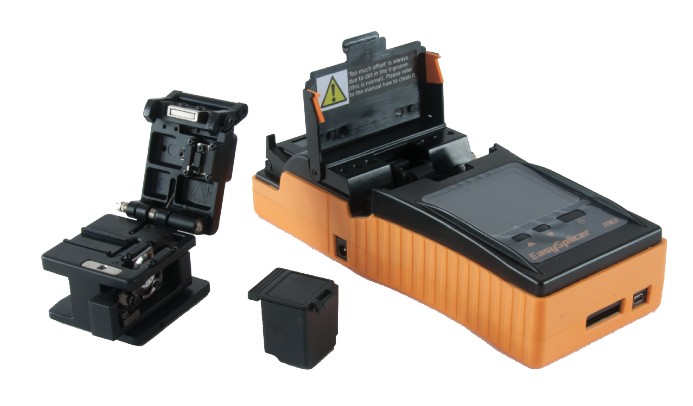

This cladding-aligned fusion splicer is designed to work every day for fiber optic splicing. It is small and easy to carry and very robust even if the splicing is performed in the field.
This splicer is innovative for fiber optic splicing especially in the creation of FTTH networks for its ease of handling, reliability and the low investment.
FS-EA-SPL-MK2 / FTTH Splicer machine
FS-EA-SPL-SC / Shoulder strap
HOL-CON-SUM / Sumitomo SOC holder
HOL-CON-FUJ / FujIkura SOC holder
| TECHNICAL FEATURES | |
|---|---|
| SPLICING METHOD | V-GROVE (CLADDING) |
| FIBER TYPE | SMF, MMF 50/125 μm fiber, 250 μm primary jacket and 900 μm secondary jacket |
| ACCESSORIES INCLUDED | Fiber holders 2 types (250μm and 900μm loose type), stripper, cutter |
| SPLICING SET UPS | 2 presets: SMF & MMF |
| TYPICAL LOSS | 0.03dB SMF, 0.01dB MMF |
| TYPICAL SPLICING TIME | 7s + 50s (splicing time + shrinking time in the stove) |
| SLEEVES DIMENSIONS | Max 64mm, 2-5mm diameter supported by the stove |
| INTERFACE | USB, mini usb |
| INTERNAL MEMORY | 1MB, External SD-Card |
| Monitor | Color LCD, 2.8″, 320×240 pixels |
| Camera 140x | |
| OPERATING TEMPERATURES | 0-40°C, max 95% RH |
| WEIGHT | 800g |
| DIMENSIONS | 230x98x53mm |
