F.O. OUTDOOR CABINET
UNDERGRUND CABINET
1100X1700 UC

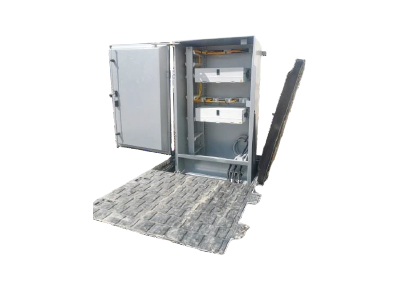

Underground cabinet with swivelling equipment compartment for telecommunication.
Innovative Hand hole structure with Underground Mechanism Made of Concrete durable system solution that can be Adapted to the specific location.
FRQ-OUT-UC-1100×1700
| TECHNICAL FEATURES | |
|---|---|
| Overall external dimensions | 1100x1700x950 (WxLxH)mm |
| Height above soil with opened hood | ≈ 1200mm, Hood opening angle ~115° |
| Total weight | ton ≈ 3 |
| Cabinet Protection rating | IP68 |
| Cover material cover: | paveable, cast iron paved-design cover |
| Cabinet hood material | stainless steel with powder coated |
| Manhole material | concrete, as per Mobily approved supplier |
| Number of Units in Cabinet | EIA RACK 20U |
| Number of Cable in Cabinet | 6 cables (13-18mm) (Customization available on request) |
