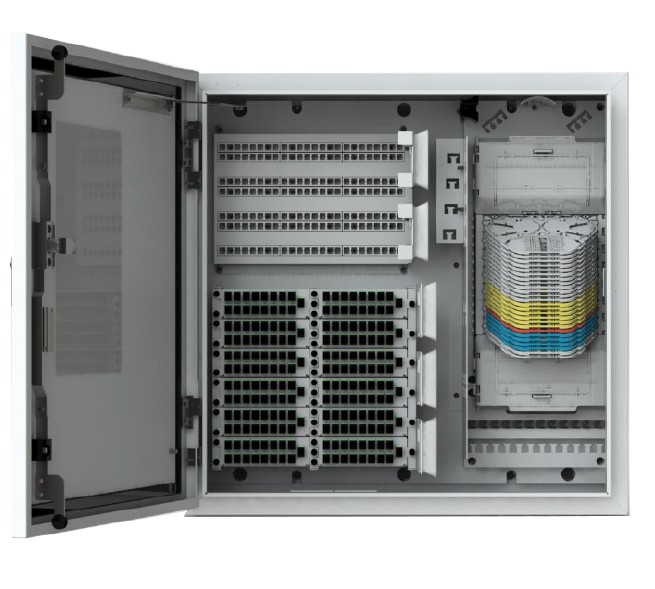

F.O. OUTDOOR CABINET
PFS 144
The PFS 144 is a wall/pole mounting cabinet and allows, on a multi-operator passive network (PON) that supports point-to-point and point-multipoint technologies, the optical connection of up to 144 HH (secondary network), with the possibility of swapping, between the cables coming from a primary concentration element and the cables directed to the individual Real Estate Units.
The cabinet is designed to house up to 12 HGLX 1×16 optical splitters.
OUT-PFS-144FO
| TECHNICAL FEATURES | |
|---|---|
| MATERIAL | SUS 304 |
| EXTERNAL DIMENSIONS | 600X600X200 mm (AxLXP) |
| COLOR | RAL 7035 |
| ADAPTERS QTY | 256 SC/APC |
| SPLICE TRAYS QTY | Splicing/parking area of optical fibers connected to the cabinet, consisting of: -12 PCS GREY (RAL 7035) SC splice trays -6 PCS YELLOW (RAL 1023) SC splice trays -1 PCS RED (RAL 3028) SC splice tray 4 PCS BLUE (RAL 5015) SC splice trays - 2 PCS GREY (RAL 7035) SC splice trays |
| SPLITTER QTY | Up to 12 pre-installed HLGX type splitters with inputs prepared in the primary network junction area included |
| LOCK TYPE | European type cylinder 333 (EN1303) with the possibility of a unified key with a single encryption. |
