FTTH IN-BUILDING PRODUCTS

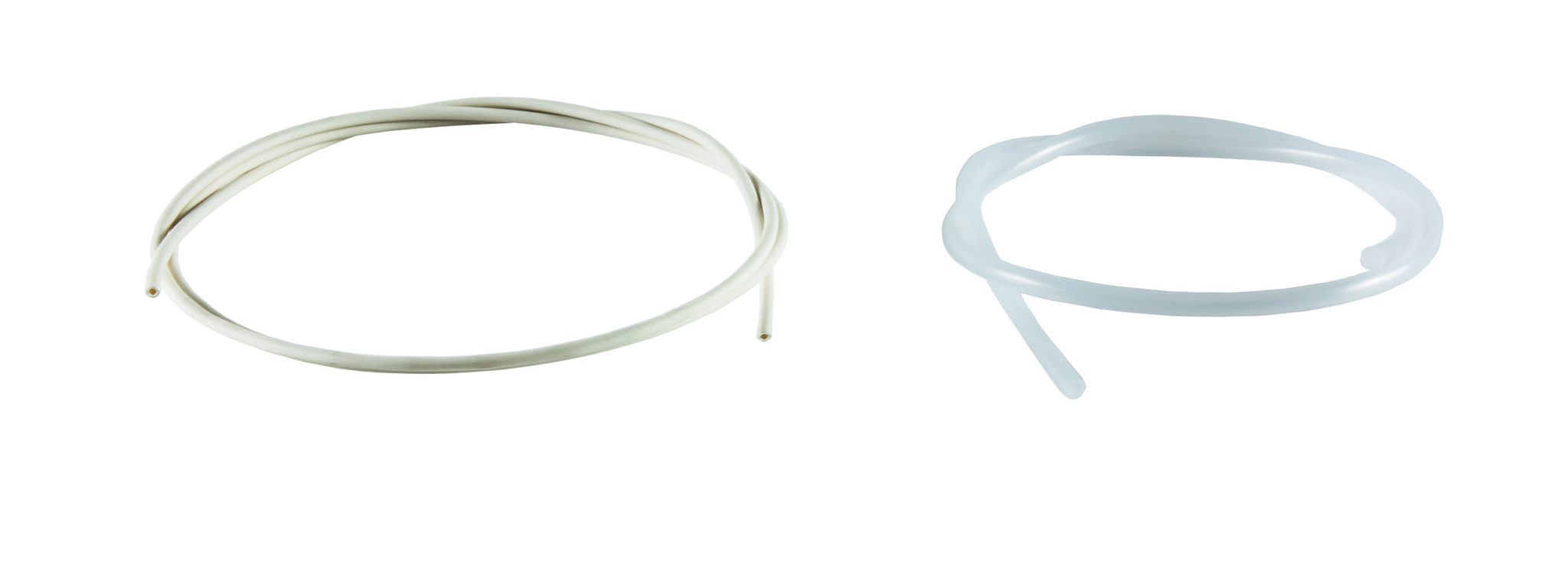

PROTECTIVE TUBE

The PE protective tube is needed for the protection of single fibers or groups of fibers and is mainly used for the passage between the various types of branchers and the end customer’s apartment. The protective tube for multiple fibers can be used to protect the fibers that come from the cable dividers in the ODF or subracks.

VERT-TUB-SING/ Protective tube for single fiber (500mt drum)
VERT-TUB-MULTI/ Protective tube for multiple fibers (500mt drum)

TECHNICAL FEATURES
Single FiberMultiple Fibers
EXTERNAL DIAMETER3 mm5 mm
INTERNAL DIAMETER1.4 mm3.5 mm
WORKING TEMPERATURE-15 / +70 ° C-15 / +70 ° C
MINIMUM BENDING RADIUS15 mm20 mm
COLORTrasparentTrasparent
