FIBER OPTIC CABLES

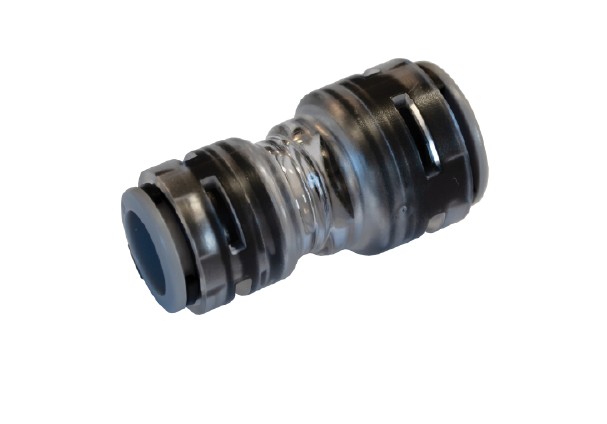

MICRODUTS REDUCER

Quick release reducers are needed to connect two microtubes with different external diameters, they have tensile strength and pressure resistance. These characteristics make them perfectly performing during the use of cable blowing machines.

BRE 14-12/10MM / 12-14 mm Ducts

TECHNICAL FEATURES
MATERIALPolycarbonate
BLOCKING SYSTEMPOM, with steel teeth
MATERIAL O-RINGO-RING Nitrile
BLOWING PRESSURE16 bar @ -20 / +50 °C
BREAKING PRESSURE> 26 bar
GAS SEALLeackage 16 bar: ~1ml/minute – Leackage a 0,7 bar: ~0,1ml/minute
WATER RESISTANCEUp to 6-meter water column
INSERTION FORCE50 N max (5kg)
TENUTA125N min microdotti 10mm
RIDUTTORIDiametro Esterno/Diametro Interno: 14/12 - 12/10mm
