BUNDLE MULTI-DUCTS

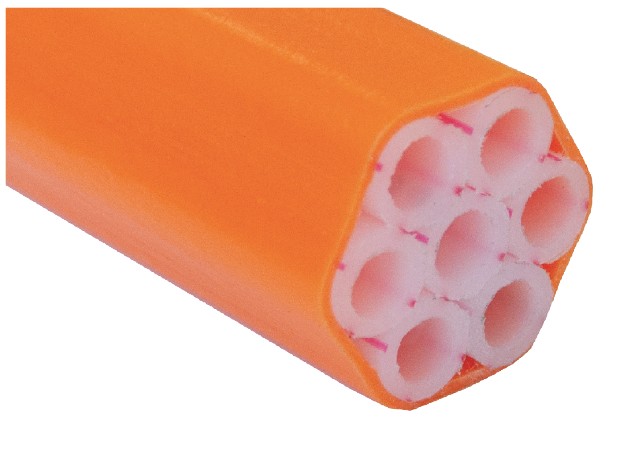

The Bundle Multi-ducts is meant for laying optical minicables and has a PEAD sheath containing 7 minitubes. The minitubes have a smooth external surface and a grooved internal surface to increase the smoothness of the cables deploying during the blowing phase. The loose sheath allows the movement of the tubes in the bundle to adapt their geometry according to the laying needs.
BUNDLE-7X10-12-OF/ Bundle 7 x 10/12 mm transparent with BLUE lines, external diam. ⌀ 50mm – OPEN FIBER
BUNDLE-7X10-12-TIM / Bundle 7 x 10/12 mm transparent with RED lines, external diam. ⌀ 50mm – TIM
| TECHNICAL FEATURES | ||
|---|---|---|
| 12/10 mm | 14/10 mm | |
| DIAMETER | 50 mm | 12 mm |
| N. OF MICRODUCTS | 3,00 mm | 1,00 mm |
| MATERIAL | PE-HD | PE-HD |
| COLOR | External sheath Orange – Internal upon request | External sheath Orange – Internal upon request |
| Open Fiber, FlashFiber e Infratel | Open Fiber, FlashFiber e Infratel | |
| TENSILE LOAD | >20 MPa | >20 MPa |
| PULLING | >500% | >500% |
| SOFTENING TEMPERATURE | T>120 °C | T>120 °C |
| DENSITY | > 940 kg/m3 | > 940 kg/m3 |
| STANDARD LENGHTS | 500 m | 500 m |
