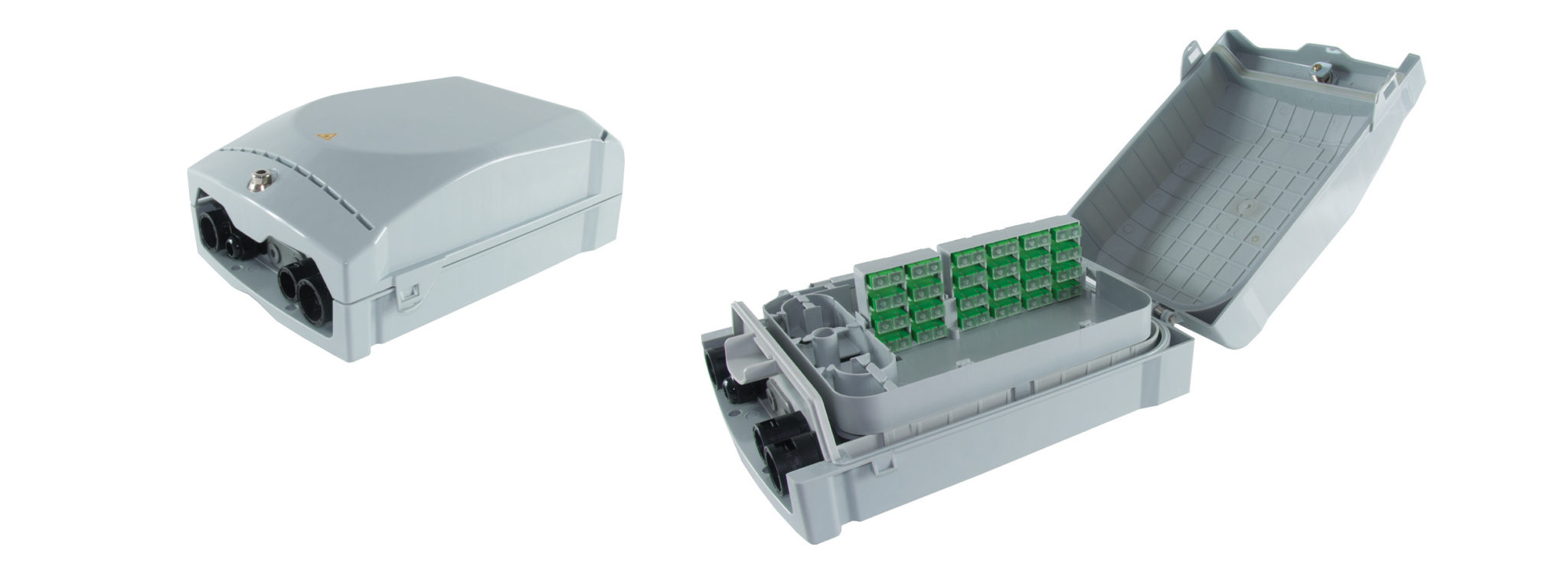

OPTICAL DISTRIBUTION BOX
PTE UNI 48 HH is designed for internal and external installation, for the cabling of buildings part of a FTTH architecture network. It has a back-panel appropriately designed so that it can be dismounted and easily assembled/cabled with more comfort in the field. Furthermore, the external case can be replaced in the event of damage, without any service interruption.
PTE-48-UNI-IE-OL-TIM / PTE UNI 48 HH (NMU 777376) includes n. 24 SC/APC DUPLEX adapters pre-installed in the user’s branch.
| TECHNICAL FEATURES | |
|---|---|
| HEIGHT | 360 mm |
| LENGHT | 260 mm |
| DEPTH | 133 mm |
| TERMINATION (USER’S BRANCH) | Up to 24 SC/APC Duplex |
| CABLE ENTRANCES | 6 |
| PROTECTION CLASSIFICATION | IP56 – IK10 |
| MATERIAL | ABS/PC |
| COLOR | Color RAL 7035 |
| LOCK | Sicurvite TYPE |
