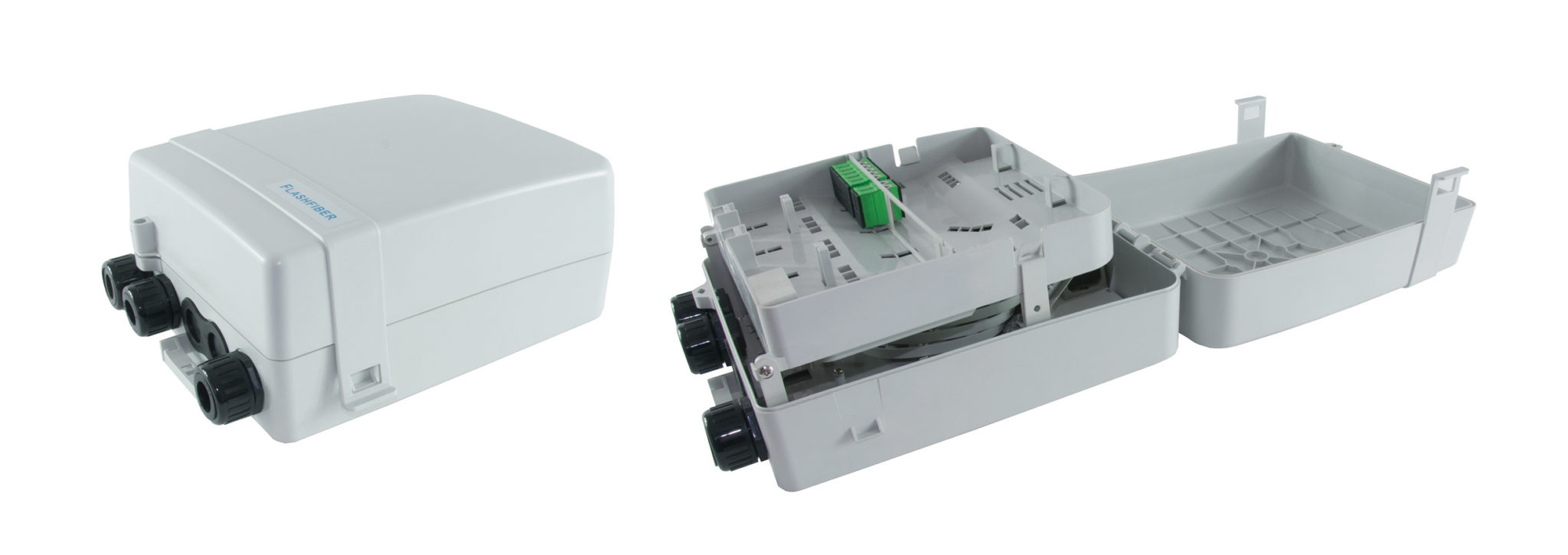

OPTICAL DISTRIBUTION BOX
ROE 32 HH
ROE 32 HH is designed for pole or wall installations and is used for Fiber To The Home applications. It can host n. 4 pc of 1×8 PLC splitter (OL code: PLC-1X8-A-09/105-SCA-09/095-SCA-2), and the incoming cable is divided inside the ODB and then distributed to the individual House-Holds (HH).
ROE-32-TIM-FF / ROE 32 HH (NMU 771784) includes n. 12 SC/APC SIMPLEX adapter pre-installed in the secondary branch and n. 8 SC/APC DUPLEX adapters pre-installed in the user’s branch.
| TECHNICAL FEATURES | |
|---|---|
| HEIGHT | 300 mm |
| LENGHT | 300 mm |
| DEPTH | 120 mm |
| TERMINATION (HORIZONTAL BRANCH) | Up to 12 SC/APC SIMPLEX |
| TERMINATION (USER’S BRANCH) | Up to 16 SC/APC DUPLEX |
| CABLE ENTRANCES | 5 |
| PROTECTION CLASSIFICATION | IP56 – IK10 |
| MATERIAL | ABS |
| COLOR | Color RAL 7035 |
| LOCK | UPON REQUEST |
| PARKING | 8 |
