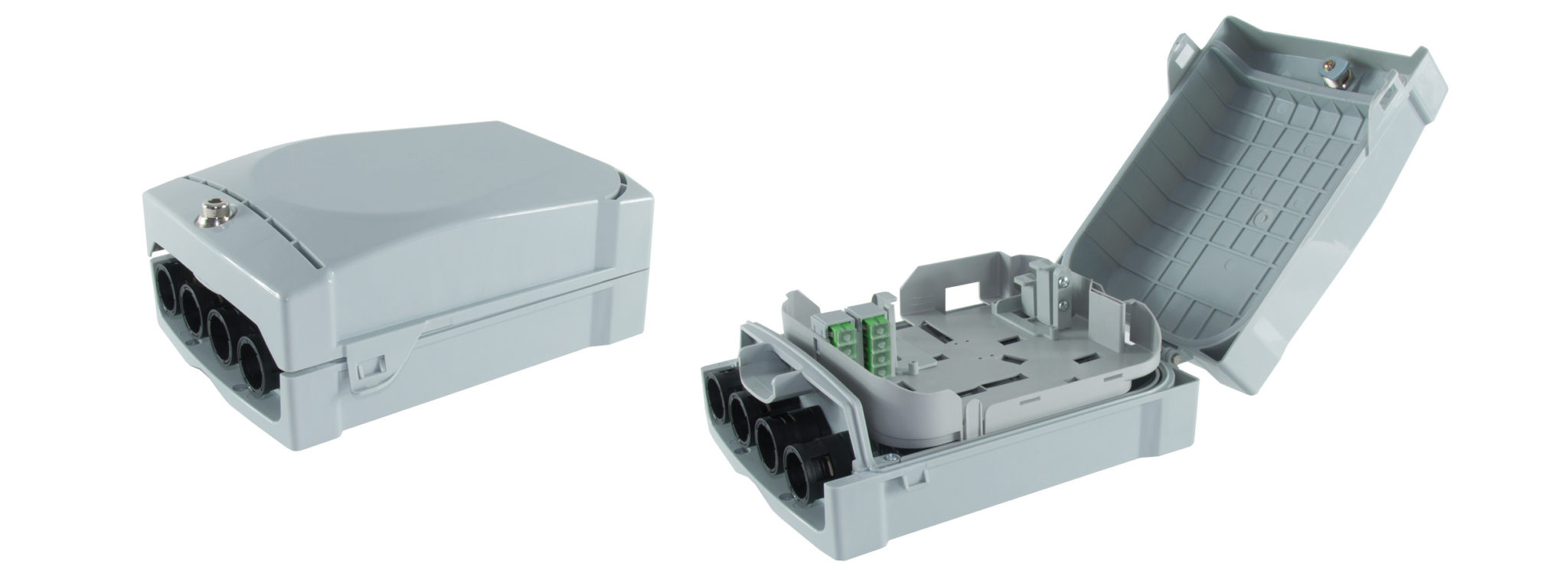

OPTICAL DISTRIBUTION BOX
ROE UNI 16 HH
The ROE UNI 16 HH is designed for internal and external installation, for the cabling of buildings part of a FTTH architecture network, it hosts 1X8 plastic splitters (OL CODE: PLC-1X8-A-09/XX-SCA-09/XX-SCA-ROEU). It has a back-panel appropriately designed so that it can be dismounted and easily assembled/cabled with more comfort in the field. Furthermore, the external case can be replaced in the event of damage, without any service interruption.
ROE-16-UNI-IE-OL-TIM / ROE UNI 16 HH (NMU 777328) includes n. 2 SC/APC DUPLEX adapter pre-installed in the secondary branch and n. 8 SC/APC SIMPLEX adapters pre-installed in the user’s branch.
| TECHNICAL FEATURES | |
|---|---|
| HEIGHT | 288 mm |
| LENGHT | 215 mm |
| DEPTH | 108 mm |
| TERMINATION (HORIZONTAL BRANCH) | Up to 2 SC/APC Duplex |
| TERMINATION (USER’S BRANCH) | Up to 8 SC/APC Simplex |
| CABLE ENTRANCES | 4 |
| PROTECTION CLASSIFICATION | IP56 – IK10 |
| MATERIAL | ABS/PC |
| COLOR | Color RAL 7035 |
| LOCK | Sicurvite TYPE |
