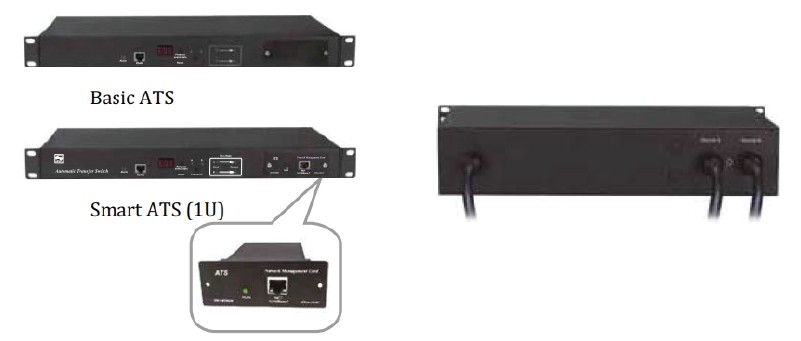

Automatic Transfer Switch (ATS)

ATS – Automatic Transfer Switch – combines the characteristics of data center power management technology with the development of power distribution technology. It applies the latest hot-swappable technology, integrates network communication, remote control and automatic transfer. The power distribution technology in the specially designed Automatic Transfer Switch can be upgraded from local management to remote management upon request with dedicated accessories.

ATS-AR228T0122

DOWNLOAD DATASHEET

TECHNICAL FEATURES
DIMENSIONS482.6x220x88.8 mm(LxPxA)
RACK UNITsU2
MOUNTING19”
TRANSFER TIME10 ≤ 16 ms
INPUTIEC60309 32A PLUG
VOLTAGE RATING180 ~260VAC 50/60Hz
INPUT CURRENT LOAD32A
OUTPUT CURRENT LOAD32A
VOLTAGE RATINGIEC60309 32A
