DATA CENTER AND DATA ROOMS – FIBER OPTICAL MANAGEMENT

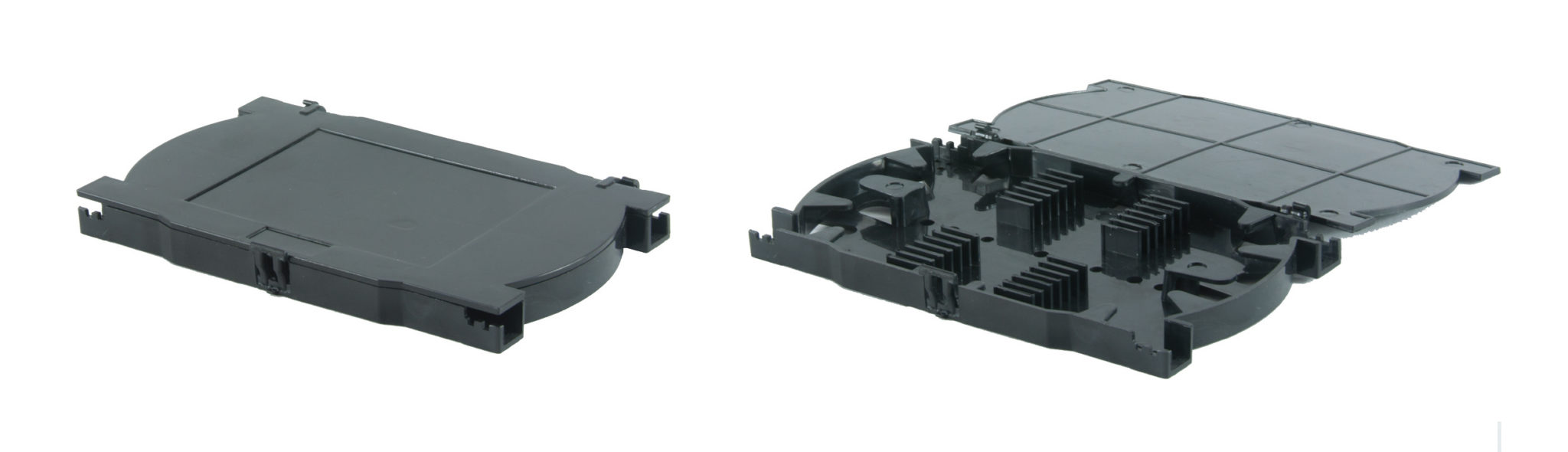

SPLICE TRAY – 24 FO BLACK
These splice trays are positioned inside the optical subracks, they can house up to 24 splices, with standard type splice covers, allowing the correct management of the fiber slack of the fibers. They have the possibility to be installed one above on each other, ensuring the opening of each of them, through the hinges that also hook the cover. The cover is included and the product is supplied in black.
TRAY-STD-SUB-BK / Splice tray 12 FO white dimensions: 156x108x14,6mm
| TECHNICAL FEATURES | |
|---|---|
| ALTEZZA | 14,6 mm |
| LARGHEZZA | 156 mm |
| PROFONDITÀ | 108 mm |
| MATERIALE | ABS |
| COLORE | Nera |
| peso | 60 gr |
| temperatura di esercizio | -40 ÷+60 °C |
| Quantità giunti disponibili | 24 |
| DIMENSIONI GIUNTI | Standard |
