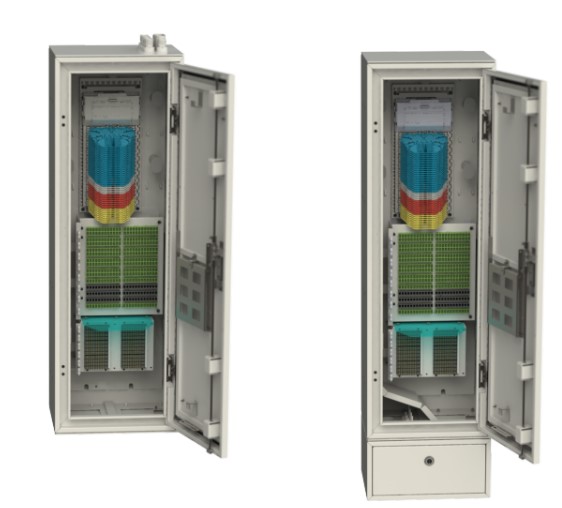

The Pole&Street cabinet is designed for distribution and connection of optical fiber. It is intended for outdoor installation on poles or on the ground (as stand-alone). The cabinet allows, on a multi-operator passive network (PON) that supports point-to-point and multi-point technologies, the optical connection, with the possibility of
exchange, between the cables coming from a primary concentration element and the cables directed to the individual customer.

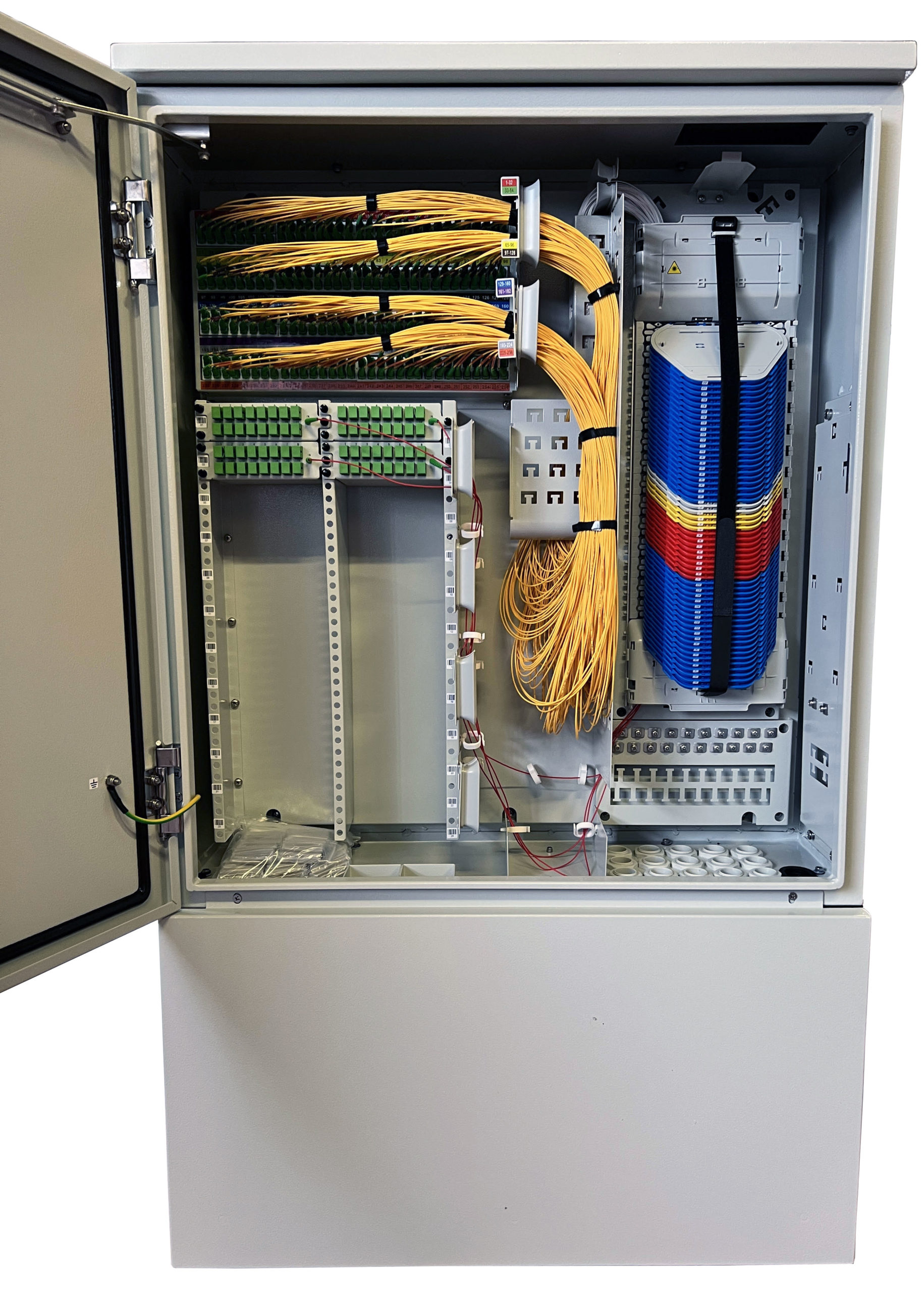

The cabinet has a primary and secondary termination area, consisting of a panel with 360 SC/APC ports (256 for secondary network, 72 for parking and 24 for primary network). This area allows to activate and quickly reconfigure the customers, being able to connect any output of the optical splitters with any of the fibers terminated on the other side by the customer. The cabinet is designed to accommodate up to 24 pcs of 1×16 BUTT type optical splitters with pre-connectorized SC/APC input and output.
The four main areas of the cabinet (cable entry, splicing, termination, and splitter) are designed to be completely independent one from the other. To do on-field operations on one of these areas, it is not necessary to operate on the others. Based on our cabinet experience, we designed the cabinet to avoid any movement of the
elements inside. The only exception is the termination panel, that must be open only for extraordinary maintenance on pigtails. The cabinet is structured to guarantee the minimum bending radius of 30 mm for FO.

The Secondary Concentration Point (SCP)patch cabinet HLGX version allows, on a multi-operator passivenetwork (PON) that supports point-to-point and multi-point technologies, the optical connection, with the possibility of exchange, between the cables coming from a primary concentration element and the cables directed to the individual customer.The cabinet has a secondary network parking area, consisting of a panel with 256 parking spaces, for as many customers that allows the end users to activate and quickly reconfigure, being able to connect any output of the optical splitters with any of the fibers terminated on the other side by the customer.The cabinet is designed to accommodate up to 24 pcs of 1×16 HLGX type optical splitters.The fibers of the cables belonging to the SCP, spliced and not with pre-connectorized pigtails coming from the parking area, are contained in splice trays with a thickness of 4 mm in different colors.The cabinet is structured in such a way as to guarantee all the optical fibers inside a minimum radius of curvature of 30 mm.

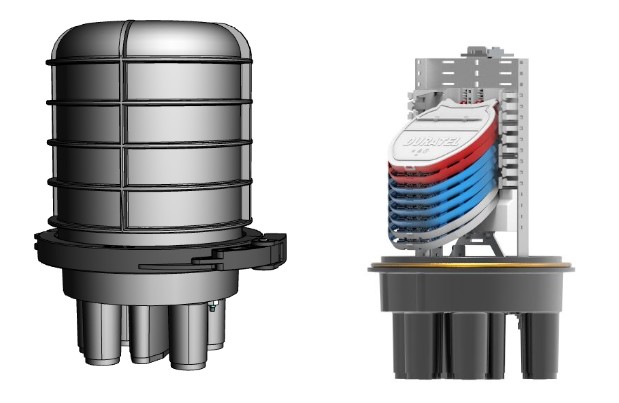

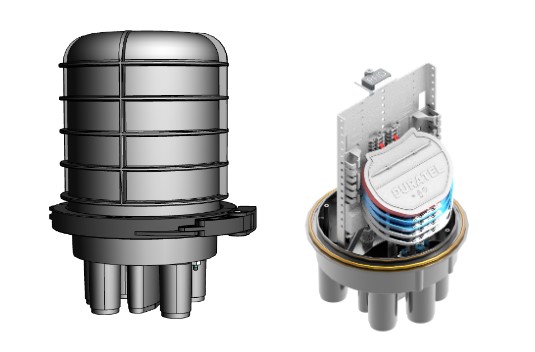

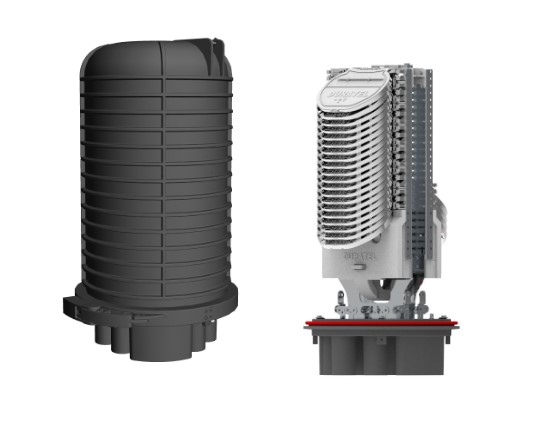

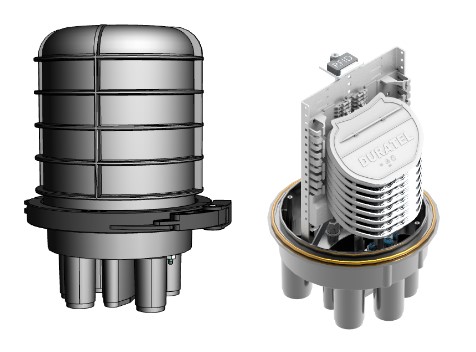

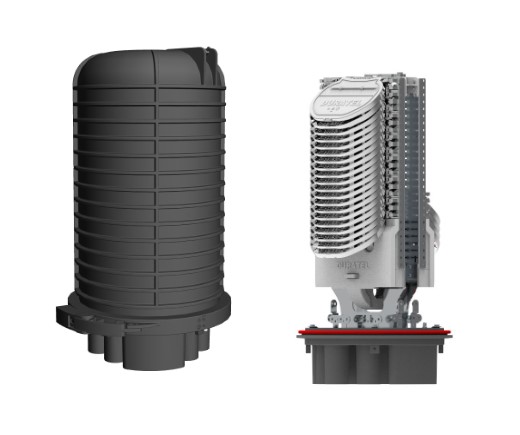

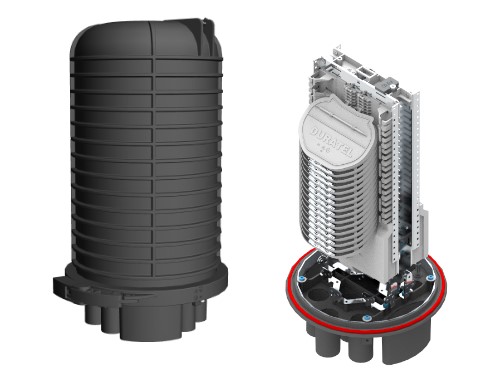

The Small Underground & Aerial SDP OF0762 is designed to manage cables of optical fiber with tube structure. It is to be installed in the fiber management system to realize junction and extraction in the external network. Closure-type SDP are used to connect distribution cables to drop cables, which are terminated at customers’ buildings, or to connect distribution cables to different outgoing distribution cables.TheSDP hosts the joints in a watertight plastic container, with protection degrees IP68-7 and IK10.It can be installed in manholes or facades with the included fixation kit, optional kit for pole mounting to be separately ordered.

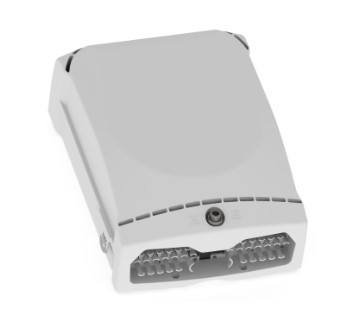

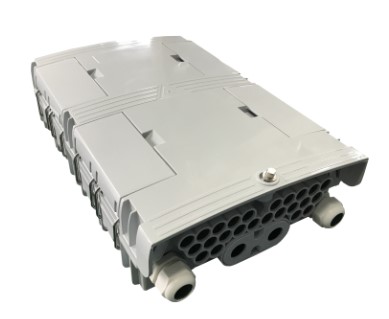

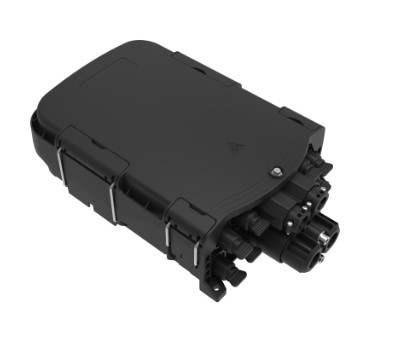

The Street Distribution Point (SDP) Boxrepresents the connectingpoint of the fibers of the optical cables incoming from aerial distribution cables and drop cableswhich are terminated at customer’s buildings or to connect incoming distribution cables to different outgoing distribution cables.The internal structure has two covers to save the connection of pigtails, the bottom base forcable entriesis right for one loop cable and 2 single cables, on the same bottom base there are 5 circular entrances for ADSSdrop cables; the internal part is suitable for8splice trays for 12 splices and an extra length manager.

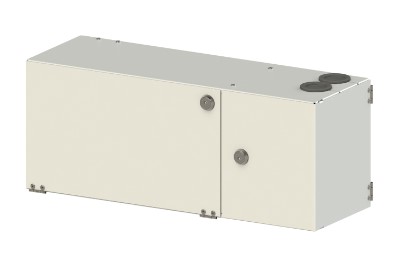

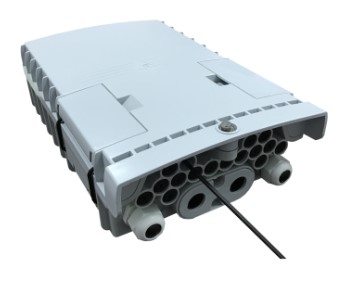

TheBuildingDistribution Point (SDP) Boxrepresents the terminationpoint of the fibers of the optical cables incoming from horizontal networkwithin a building with more than 3 HousHoldsand it’s used as a bridge between horizontal network and vertical network. It’s generally located near to the building. It’s used only for one operator. Thebottom base forcable entriesis right for one loop cable and 2 single cables, on the same bottombase there are 16circular entrances for drop cables; the internal part is suitable for8splice trays for 12 splices and an extra length manager.
