Fiber Management

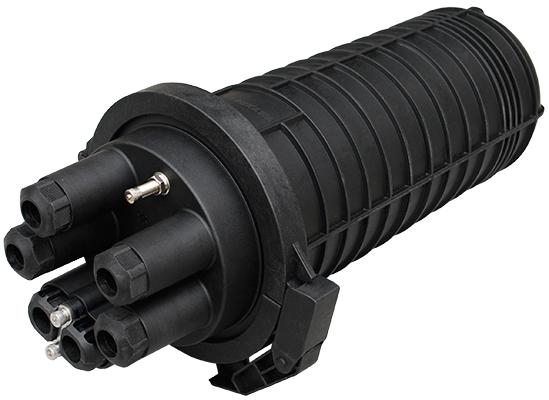

Fiber Optic Splice Closure

Features

OUT-Q-CL-A-4-TrayS1

Closure Size (mm) A: 160×420, B: 160×530

TrayS1 (Standard for size A), TrayA (Standard for size B),

TrayB (only for size B), TrayS2

(Base Kit), 2, 3, 4 (max 4 tray per Closure)

Cable Entry Ports (in addition to oval port)

Type of Splice Tray (24 fiber per tray)

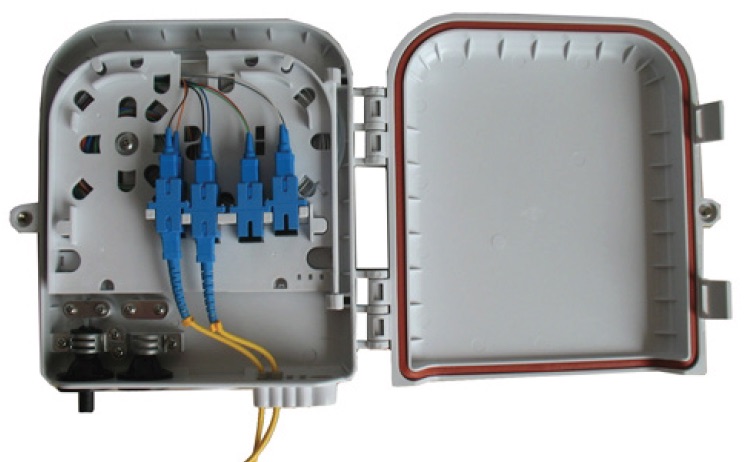

Fiber Distribution Box

Features

– Structure totally closed.

– Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

– Clamping for feeder cable.

– Pigtails are running through own path without disturbing each other.

It can accept SC or LC Duplex Adapters.

– Locked with key.

Applications

– Optical equipment

– Data communication networks

– FTTH & FTTx

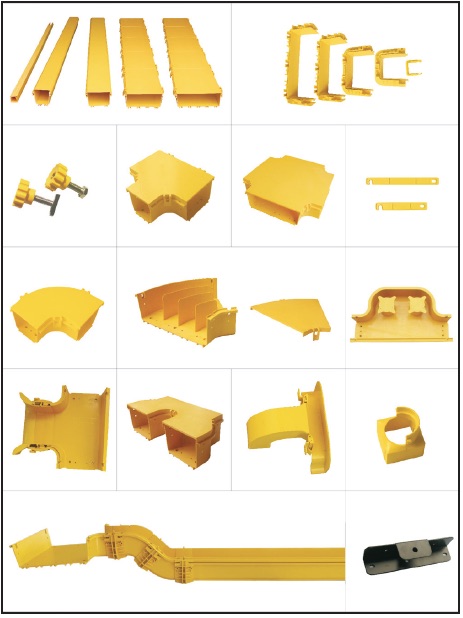

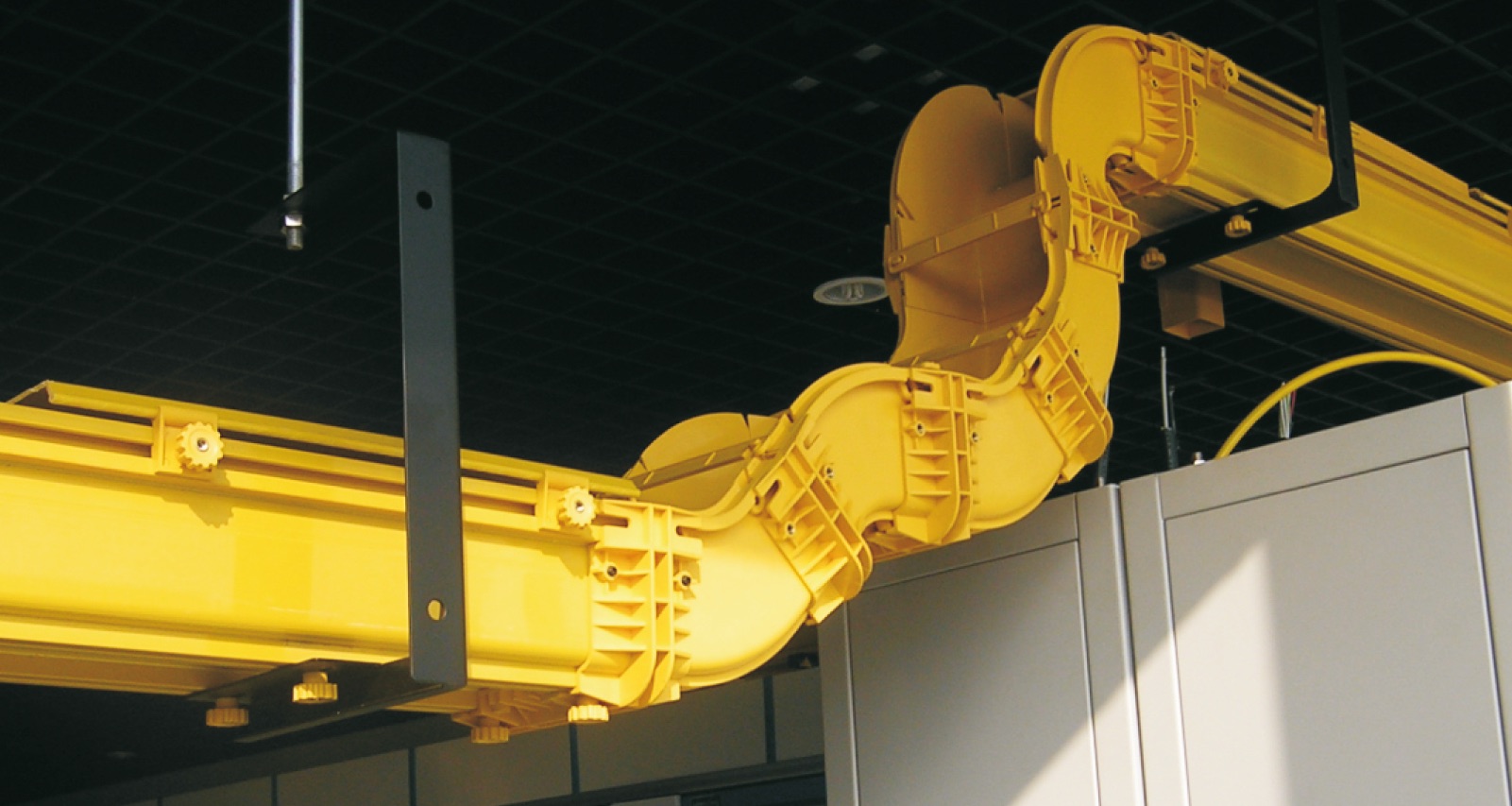

Optical Cable Duct

Features:

Cable tray is a raceway system designed to protect and route fiber optic patch cords, multi-fiber cable assemblies and intrafacility fiber cable to and from fiber splice enclo- sures, fiber distribution frames and fiber optic terminal devices.

Available Sizes

– 2” (2”×2”50mm×50mm)

– 4” ( 4”×4” 100mm× 100mm )

– 6” ( 4”×6” 100mm× 150mm )

– 10” (4”×10”100mm× 250mm)

– 12” (4”×12”100mm× 300mm)

Several Accessories Availables

  • Hybrid Connector/Adapters
  • Exit Drop Options
  • Installation/Supporting System
